CARL ZEISS CMM
MAKE: Carl Zeiss (German Make)

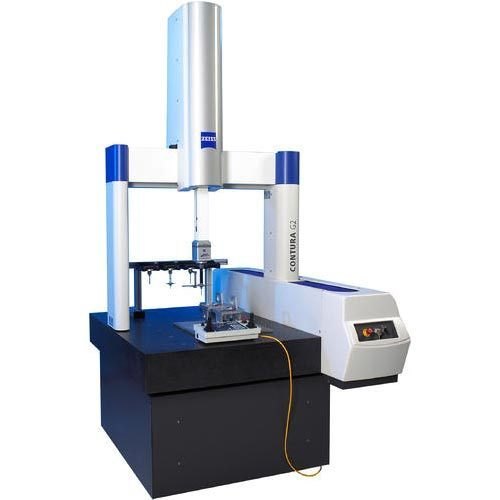

MODEL: Contura G2
ACCURACY: 1.8 + L/300 μm
SOFTWARE: Calypso
MACHINE SIZE:
1. X=1000,Y=1200,Z=600 MM.
2. X=700,Y=700,Z=600 MM.

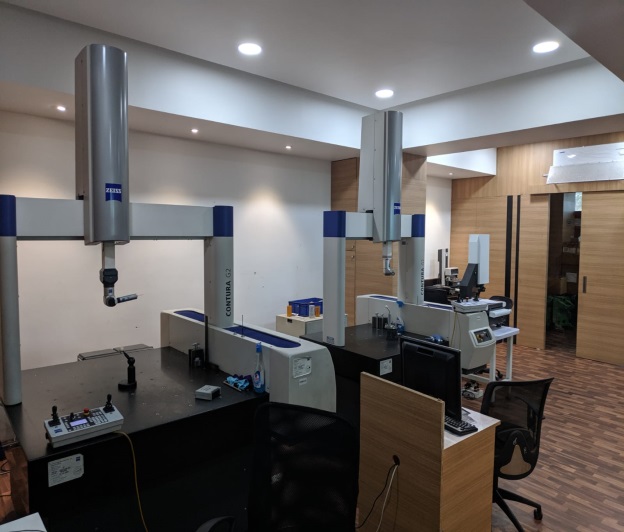

Standard CMM Room
CMM inspection activities are performed under
conditions specified below:
Temperature: 18-22 Degree C
Humidity : 40% to 70%
CARL ZEISS 3D BLUE LIGHT SCANNER
Carl Zeiss Steinbichler 5M
German Make
CAD Comparison of component, CAD comparison of Gear Areas, For Flexibles and Rubber Areas
Software we use : Polyworks and GOM
HEXAGON ROMER ARM LASER SCANNER
Purpose:
CAD Comparison of component, CAD comparison of parts with fixture, with RPS alignment, best fit alignment
Software we use for Inspection:
Polyworks and GOM

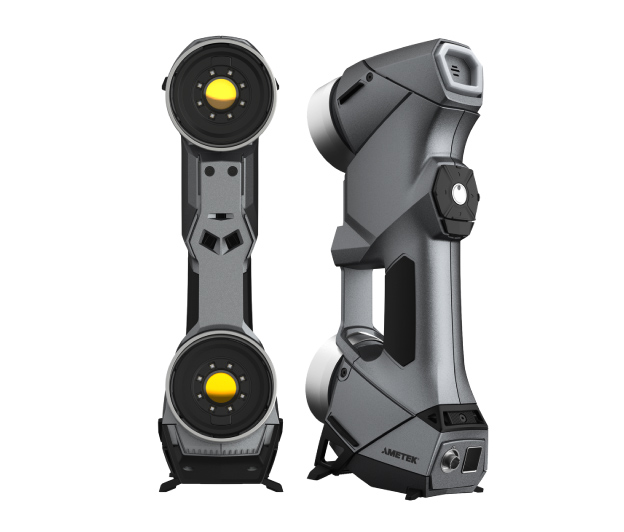

HANDYSCAN SILVER ELITE BY CREAFORM
Capabilities-
- Featuring accuracy, portability, simplicity, versatility, and a trusted patented technology.
- Captures highly accurate and repeatable 3D measurements of any complex surface in any location.
- Accuracy Up to 0.030 mm (0.0012 in)
Scanning Area – 310 x 350 mm (12.2 in x 13.8 in) - Part Size Range (recommended) 0.05–4 m (0.15–13.1 ft)
Weight -0.94 kg (2.1 lb)

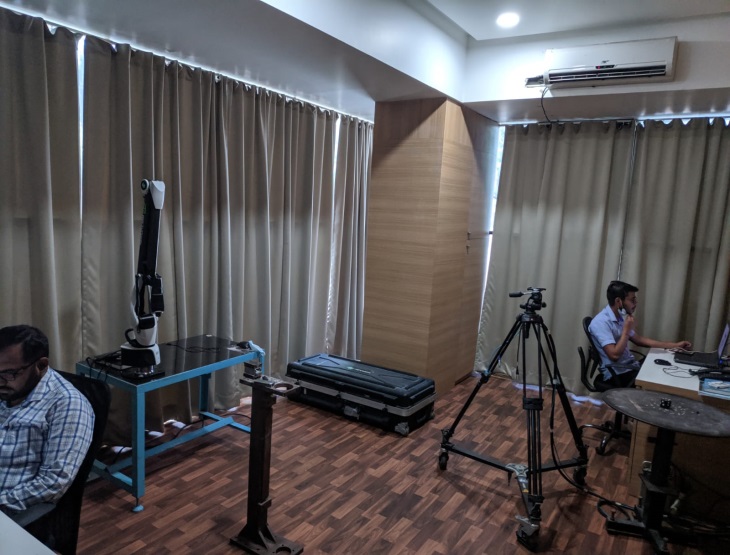

STANDARD SCANNING ROOM
Inspection activities are perform under the conditions specified below:
Temperature: 18-22 Degree C
Humidity: 40% to 70%
ZEISS CONTOUR TESTER
Make – Carl Zeiss TSK Make

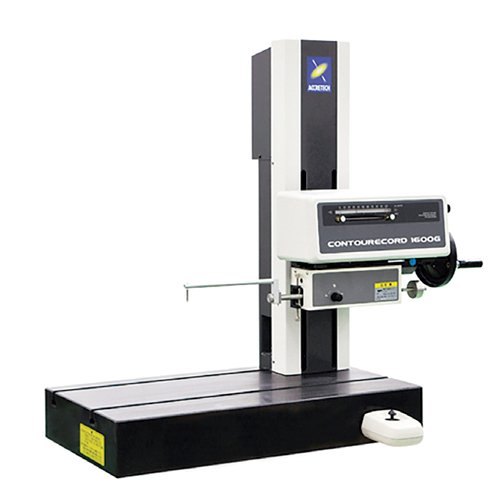

Model – Contourecord 1600G 14N
Motorised Z Axis of 250 mm and
Bed Size of 600 X 350 mm
Accuracy: ± (1 + 2L/100) μm (L: Measuring length mm)
Purpose for Inspection:
Inspection of small radius, chamfers & critical profiles which are else where not possible to check.
ZEISS SURFACE ROUGHNESS TESTER
Make: Carl Zeiss Accretech

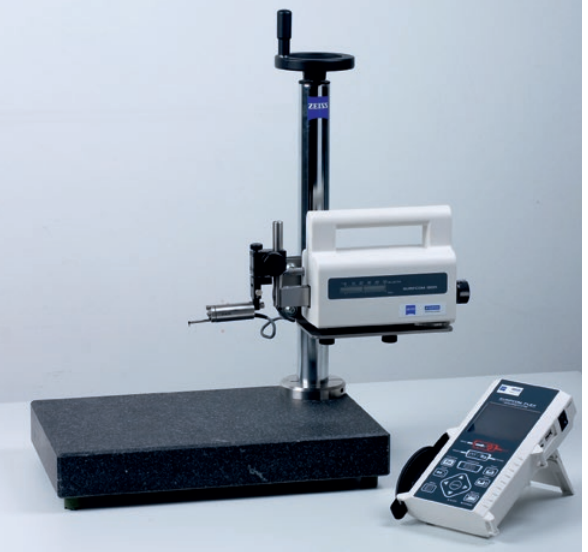

Model: Surfcom 130A series
Base plate (granite): 400 x 250 x 50 mm Max. height (Z): 300mm
Inspection of surface finish parameters like Ra, Rz, RzMax, and more.
VIDEO MEASURING MACHINE (VMM)
Make: ATQ Metro
Model: EX 300 series
Range: 300 x 200 x 200
Accuracy: 2.5+ L/100
Purpose of Inspection:
Inspection of minute & tiny parts which cannot be inspected on CMM or manual measuring instruments.
CHEMICAL TESTING

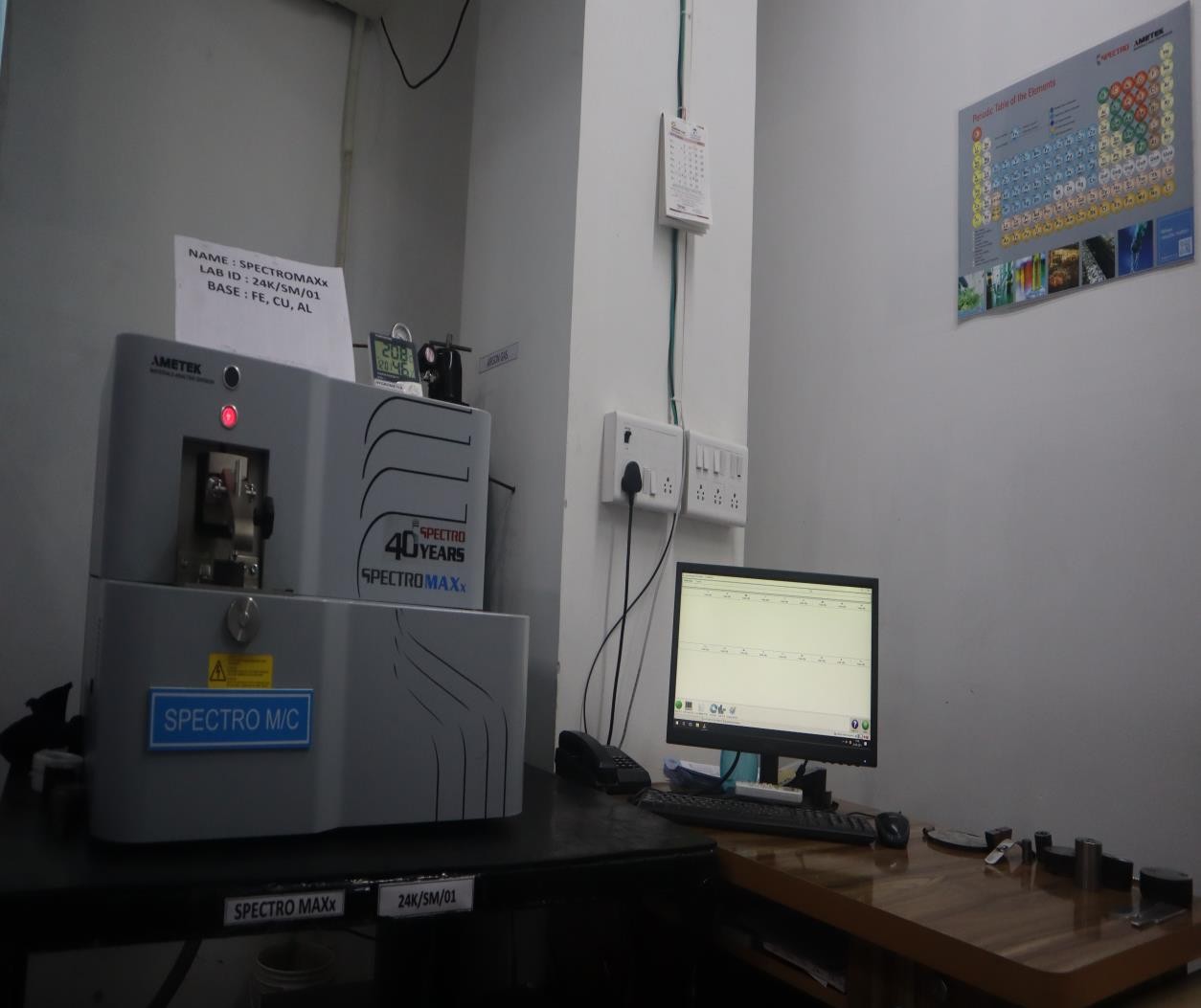

- Chemical analysis of ferrous and Non-Ferrous metals by OES method.
- NABL certification for following bases.
– Low Alloy steel
– Stainless steel
– Aluminium & its alloy
– Copper & its alloy
– Cast Iron & Tool Steel - We also offer PMI(Positive Material Identification) for on-site crossverification of metals.
MECHANICAL TESTING
NABL accreditation for following test as per IS and ASTM standards.
- Tensile Test & Bend / Re-bend test
- Flattening Test
- Hardness(Rockwell, Brinell , Vickers Micro-Vickers)
- Fracture Test & Proof
- Load test
- Crushing Test
- Drift Expansion Test
- Impact test(V & U Notch)
- Jominy Hardenability test
- Flange Test & Nick Break test
- Erichsen Cupping test.
- Nominal Mass
CALIBRATION OF GAUGES
We offer calibration for following instruments.
- Vernier callipers
- Height Gauge
- Depth Gauge
- External Micrometre
- Internal micrometre
- Depth micrometre
- Plunger dials
- Lever dials
- Bore gauge
- Dial snap gauges
- Pistol Calliper
